SKU: X02-10-001 - Through Shaft Ram with Port Kit - $1090

SKU: X02-10-003 - Through Shaft Ram without Port Kit - $950

TSR - Through Shaft Ram Assist Steering for Jeep JL and JT - COMPATIBLE WITH M210 WIDE D44 FRONT AXLE.

NOT COMPATIBLE WITH NARROW FRONT AXLE FOUND ON SPORT, SAHARA, AND NON-XR WILLYS MODELS.

Let's talk about performance - SIZE MATTERS! The Apex Through Shaft Ram utilizes the appropriate shaft and body diameter to optimize performance with the Apex boosted factory electronic power steering system. Meaning the factory steering system is able to keep up with the fluid demands of the Through Shaft Ram because it was engineered to work hand in hand with the stock steering system on the JL and JT . This eliminates the laggy feel that can come from ram assist steering. Whereas in the past it was typical to experience a laggy/slow steering feel with most ram assist kits simply because the ram was too large and the factory system could not keep up with fluid volume requirements of the hydraulic ram.

So… Why Through Shaft and not a traditional ram?

Through Shaft technology provides equal steering assist on your push and pull movements of the ram and is powered by the stock steering gear. Additionally, the TSR also behaves like a steering stabilizer on steroids - providing more accurate steering characteristics on and off road. Traditional rams do not provide this accuracy benefit. Also, you no longer have to compensate for shaft and fluid displacement in the body of the ram, this obsoletes the need for a larger volume reservoir whereas traditional rams need larger reservoirs due to shaft displacement in the body of the ram.

Is the TSR compatible with the APEX Steering Boost Kit?

The answer is yes! The TSR is compatible with the Apex Boost Kit and when paired together it greatly improves steering power for tires up to 40". If you are looking to get the most out of your steering system, we recommend installing our Boost Kit in addition to the Through Shaft Ram system.

Do I have to install a Boost Kit in order to install the Through Shaft Ram?

The answer is no. Part of the design concept behind the Through Shaft Ram was to not only improve off-road performance, it was also designed to enhance the on-road drivability of the Jeep JL and JT. The TSR greatly improves steering accuracy and also eliminates the sloppy feeling that you often times experience while driving the JL and JT down the highway. If you are running 35s or smaller you can install the ram with or without the boost kit. Even without the Boost Kit, the TSR will enhance the on and off-road capabilities of your daily driven Jeep.

FEATURES AND BENEFITS:

The TSR adds steering assist to the factory system. This gives you the additional steering power you need to turn large off-road tires even with your lockers engaged.
Better stabilizer than a traditional stabilizer because it adds assist and not just resistance
Steering feedback is reduced with the TSR
Hard coat anodized
Hard chromed shaft
Sealed bushings
Antiflop bushing
Clamps close to knuckle to reduce flex in the tie rod and improves steering accuracy
Reversible body cap for various axle applications
Meticulously designed line routing for optimal flexibility and functionality
Designed to work hand in hand with APEX Steering Boost Kit

NOTES:

IF INSTALLING ON TRUSSED AXLES, YOU WILL HAVE TO FABRICATE YOUR OWN AXLE SIDE BRACKETS (NOT BOLT ON)
This kit requires the factory steering gear to be ported.
Compatible with aftermarket ported steering gears. May require additional fittings and adaptors. Please see install instructions for parts needed: CLICK HERE
Compatible with APEX Steering Boost Kit
Compatible with Apex Chassis and RPM Steering 2.5 Ton Tie Rods and Tie Rod Ends - Please read page #2 of the instructions for further details
Compatible with Aluminum and Steel Steering Gears
TIE RODS COMPATIBLE WITH THE TSR: CLICK HERE

NEW PRODUCTS

TSR - Through Shaft Ram for Jeep JL and JT

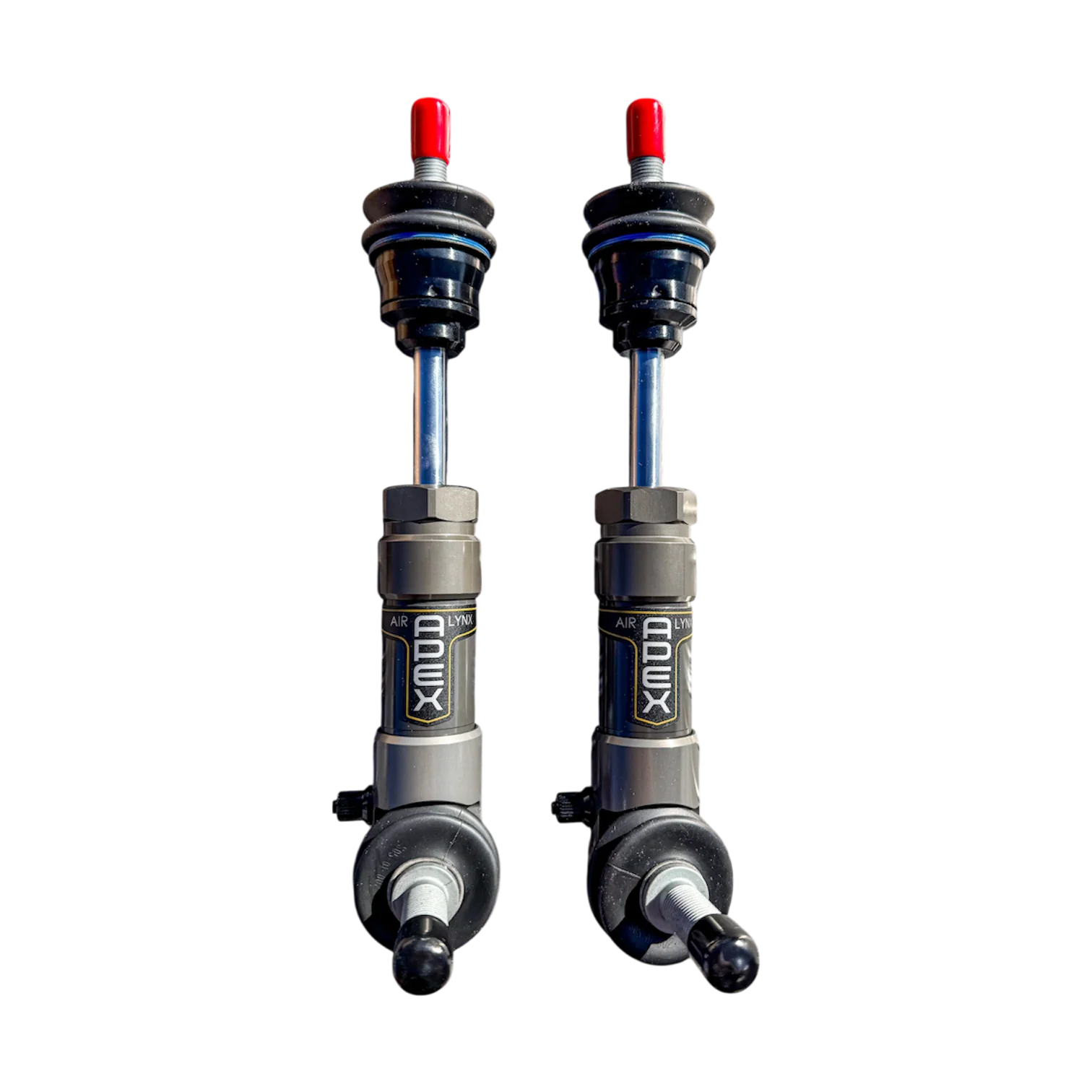

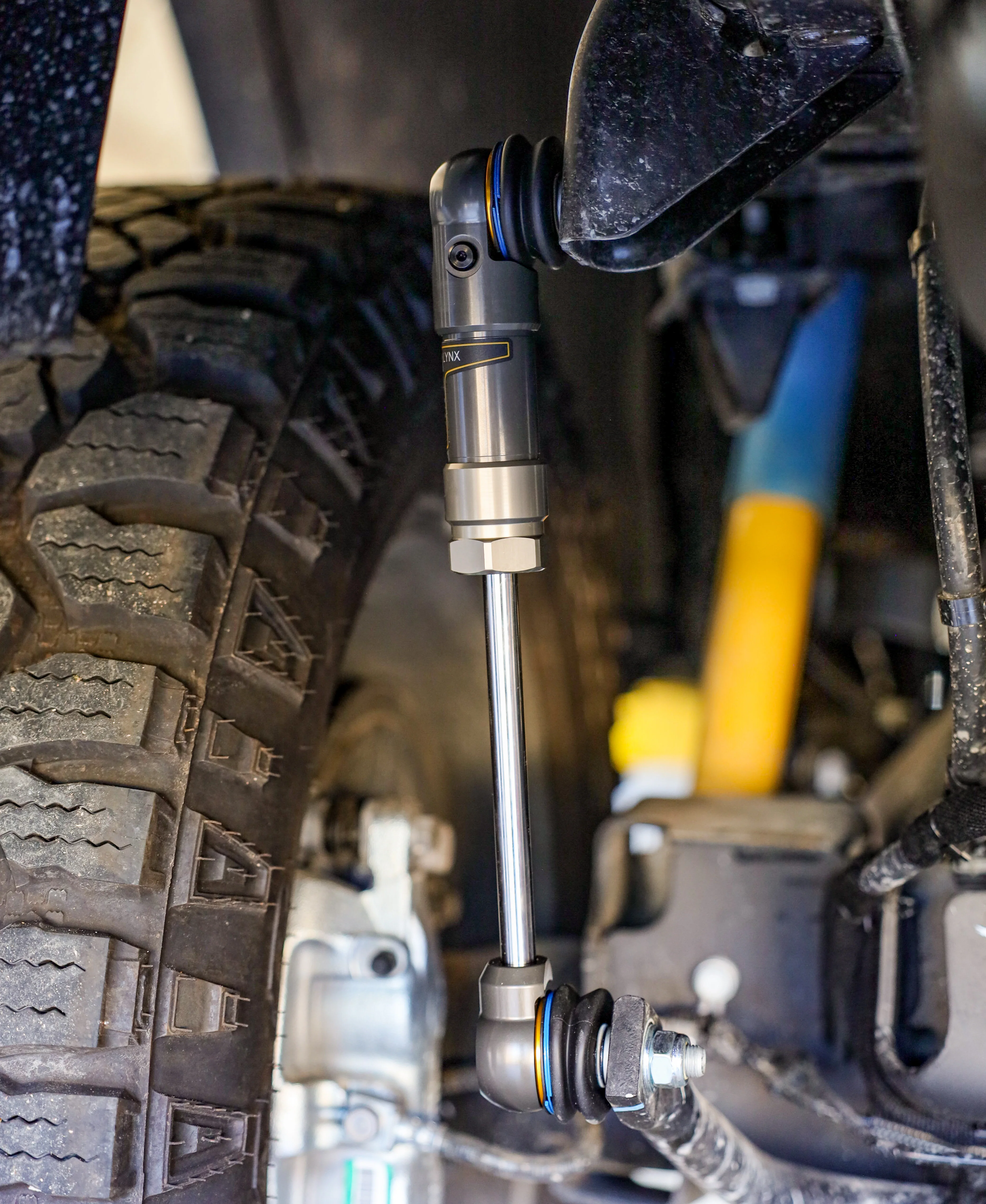

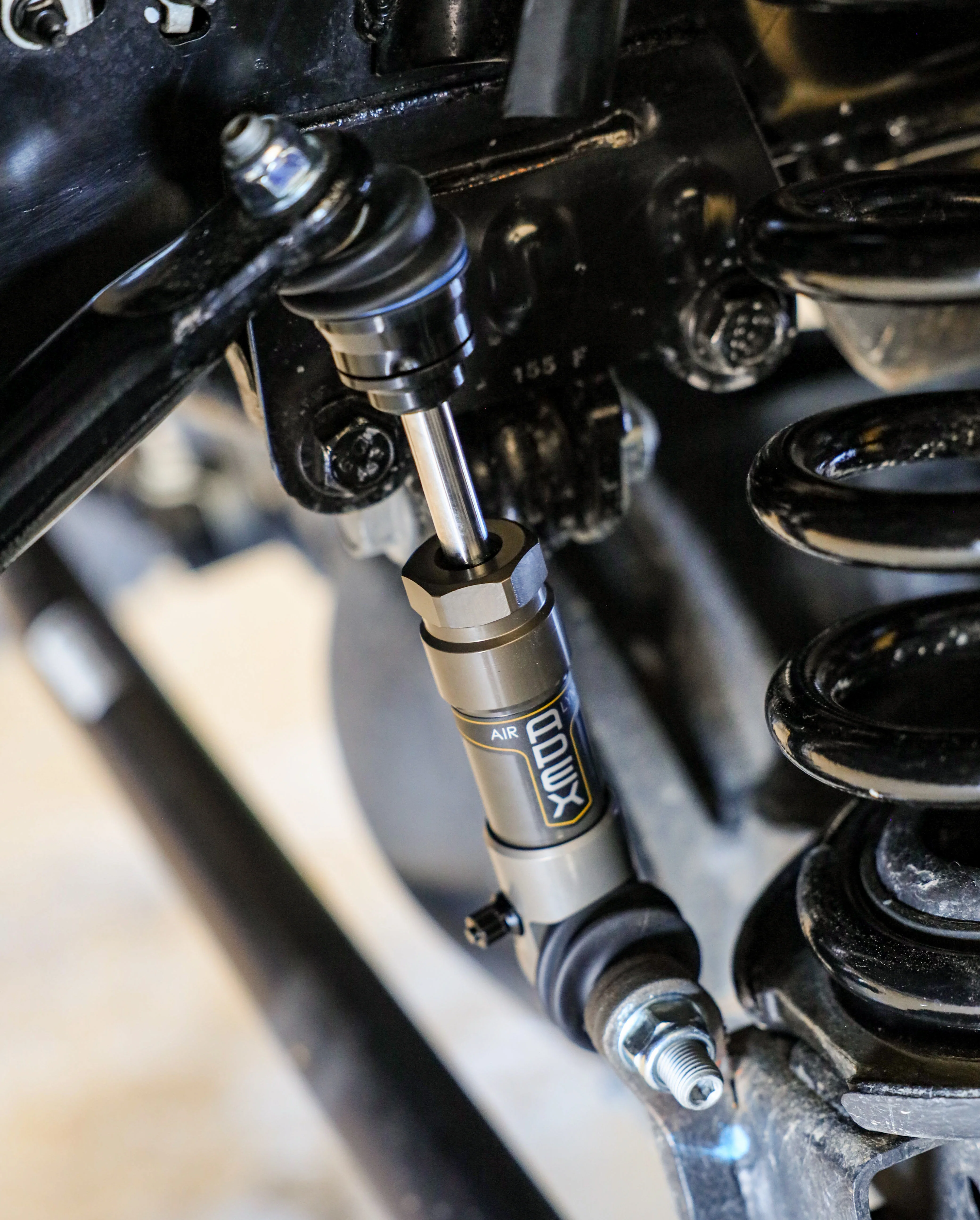

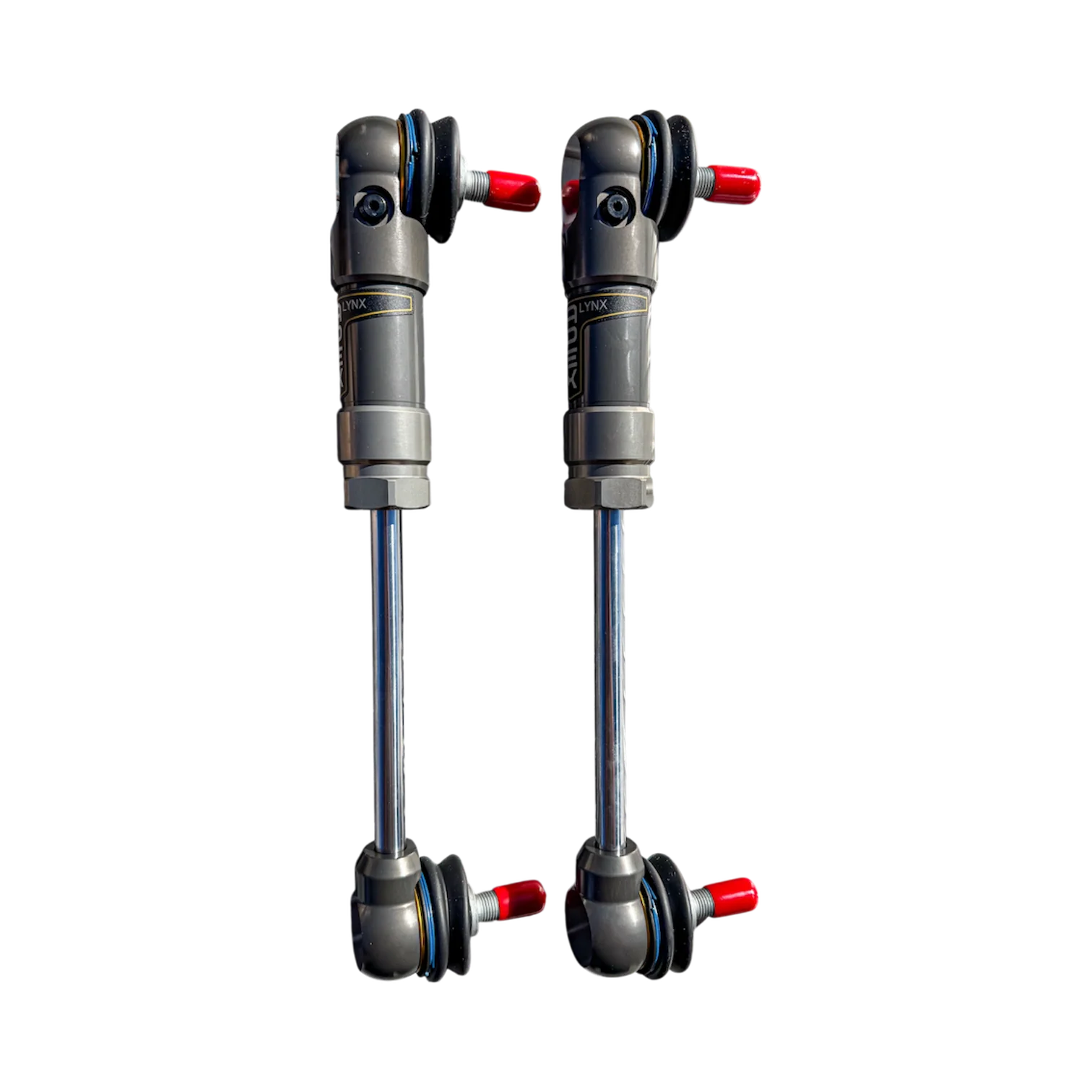

airLYNX - Ram 2500/3500 (Front)

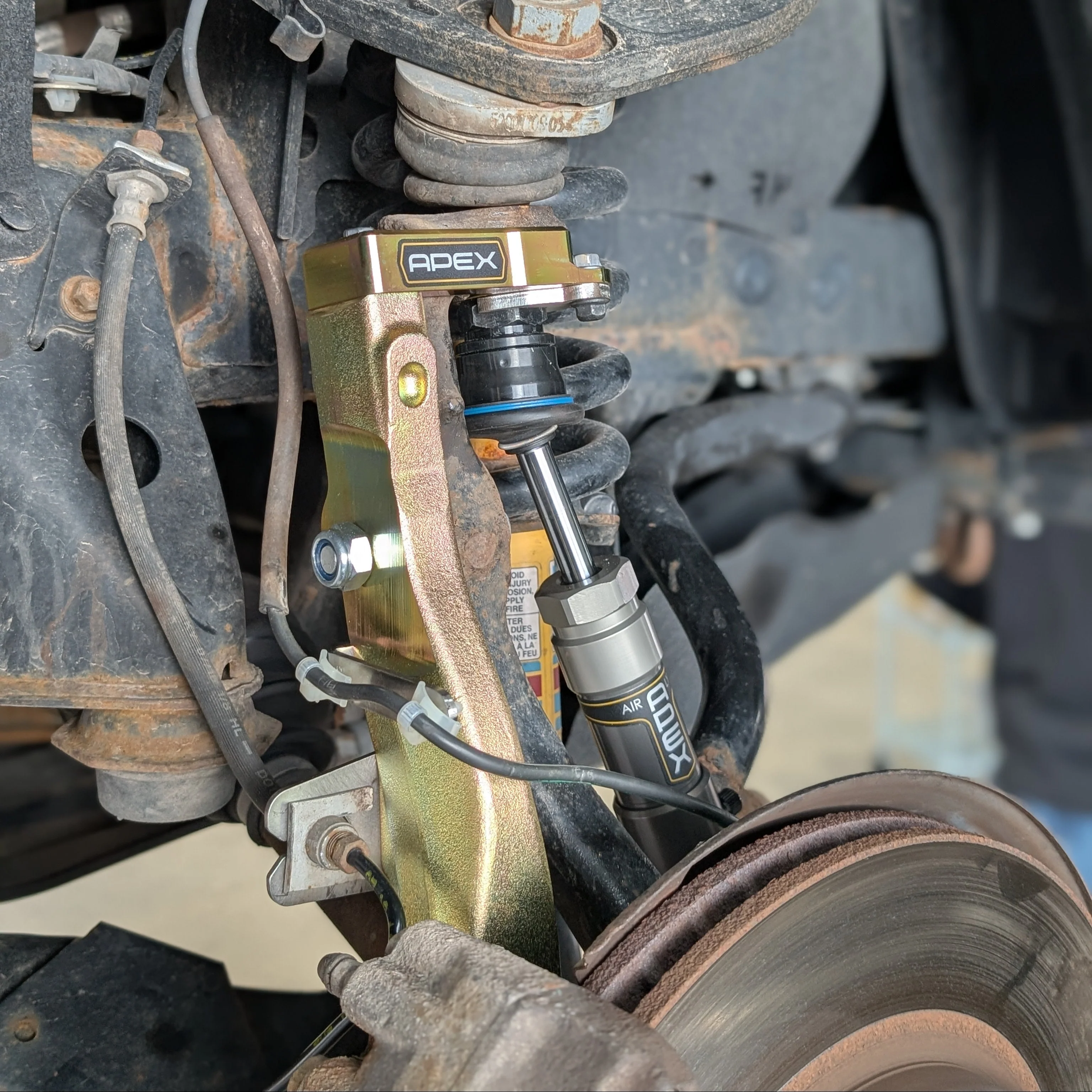

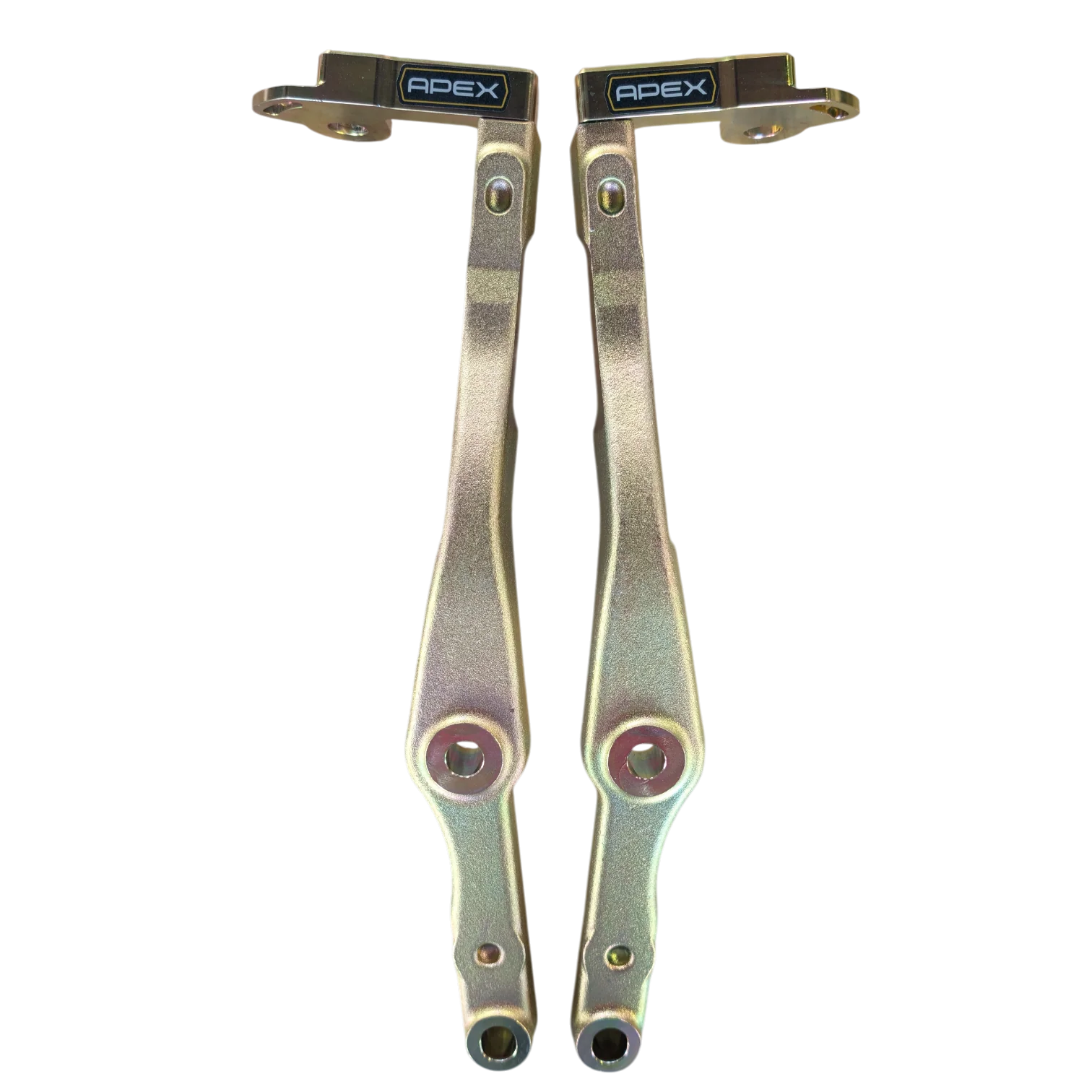

Toyota Spindle Gusset - Bolt On - New Forged Design

airLYNX - Ram 2500 (Rear)

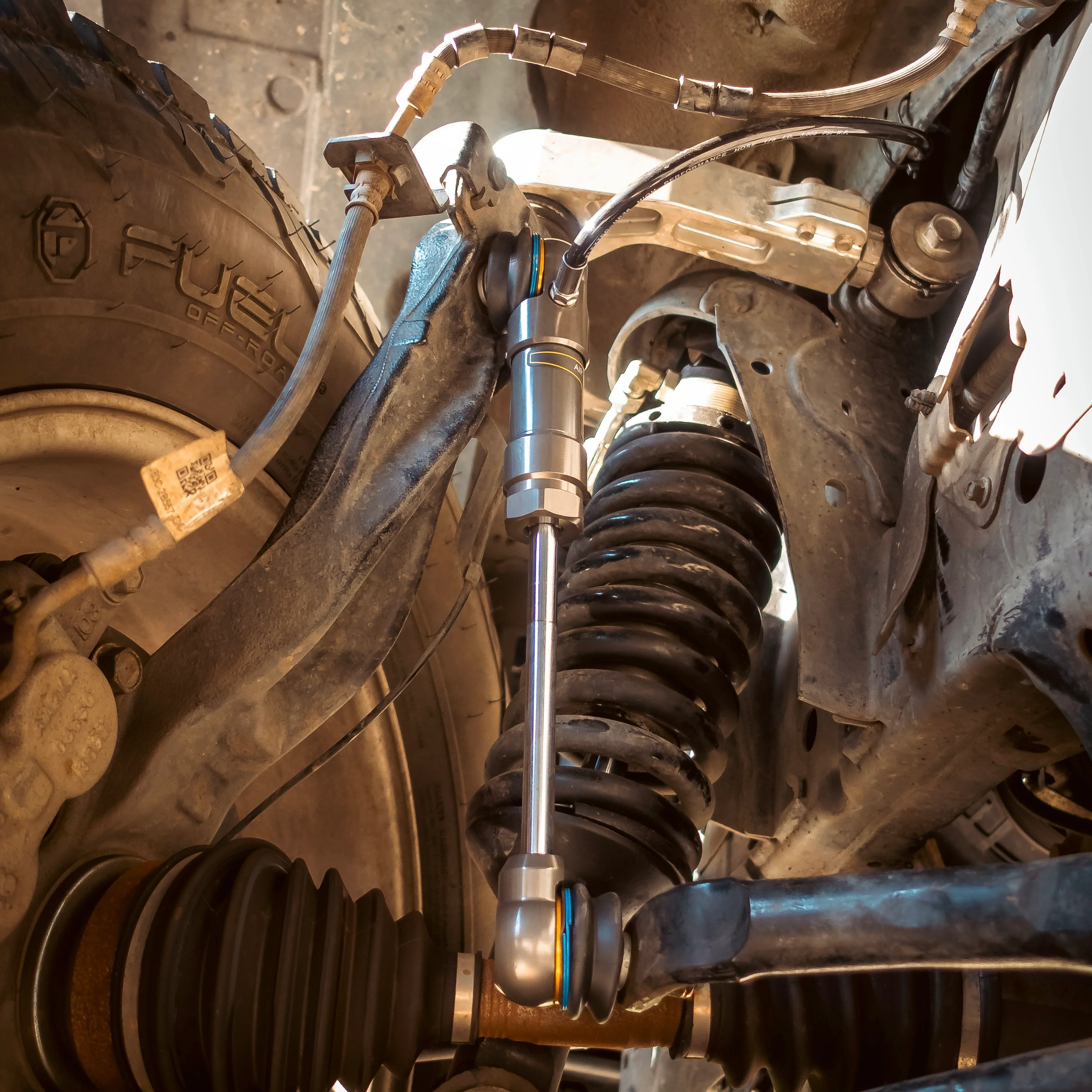

airLYNX - Ranger and Ranger Raptor (Front)
